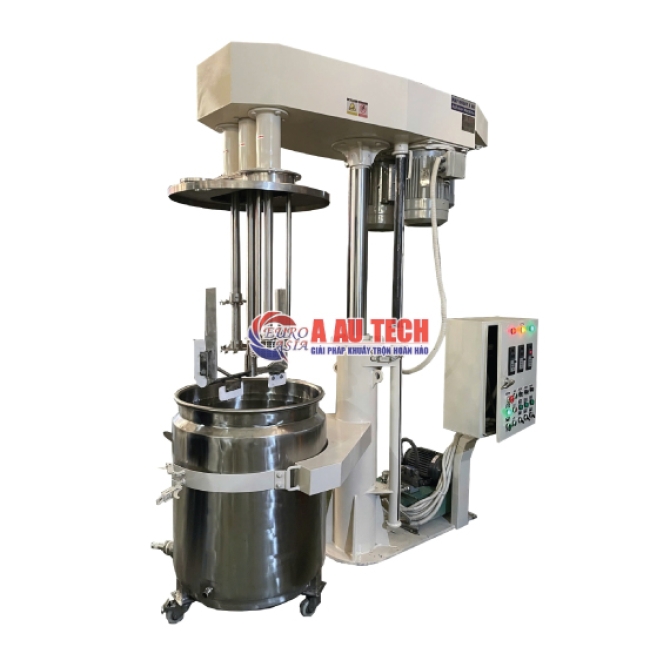

Triple-Shaft Mixer
Main Features
- The mixing shafts are independent of each other
- Controlled by modern inverter technology
- Raising and lowering the mixing wings by hydraulic system
- Can be installed on the working floor
- Use of moveable mixing containers

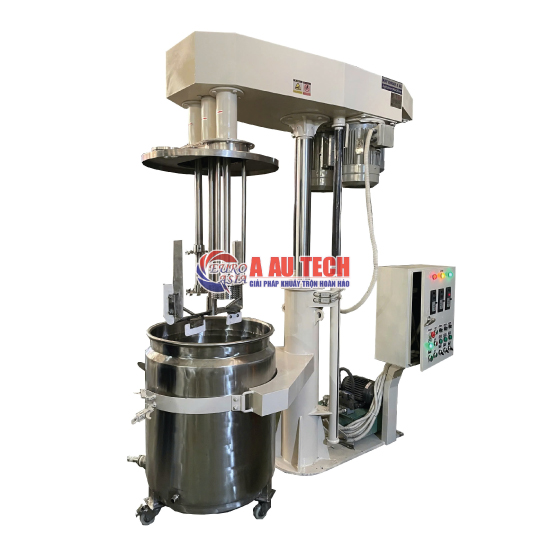

The Triple-Shaft Mixer is a high-performance machine designed to efficiently mix materials and obtain a homogeneous mixture in industrial production processes. With triple mixing shafts operating simultaneously, these mixers enable faster and more effective mixing.
The Triple-Shaft Mixer delivers outstanding performance thanks to its powerful motor and special mixing shaft design. These shafts have the ability to operate simultaneously in many areas in the mixing chamber, helping to shorten processing time and increase production efficiency. Furthermore, speed and other operating parameters can be flexibly customized, ensuring high uniformity of material mixture. All surfaces in contact with the product are made of high-quality 304L stainless steel, meeting strict safety and hygiene standards.
The machine also has the capability to be raised or lowered through an electro-hydraulic system, allowing mixing at the desired height. In addition to our standard models, the machine can be manufactured according to your project with the engine power you desire.
The Triple-Shaft Mixer can be tailored to meet the exact requirements of each project. Customers can choose engine capacity, mixing speed, volume, explosion-proof design according to ATEX Zone 1 EEx dIIB T4 standards.
| Machine Type | SM10-3MIL | SM100-3MIL | SM300-3MIL | SM500-3MIL | SM1-3MIL | SM1.5-3MIL | SM2-3MIL | SM3-3MIL | SM5-3MIL |
| Speed Mixer (Kw) | 1,5 - 3 | 5,5 - 11 | 11 - 22 | 15 - 45 | 30 - 75 | 45 - 75 | 45 - 90 | 55 - 90 | 75 - 132 |
| Butterfly Mixer (Kw) | 4 - 5,5 | 7,5 - 15 | 15 - 30 | 30 - 55 | 55 - 90 | 55 - 90 | 75 - 110 | 90 - 132 | 110 - 160 |
| Anchor Mixer (Kw) | 0,75 - 1,5 | 4 - 5,5 | 7,5 - 11 | 11 - 15 | 15 - 30 | 22 - 45 | 30 - 55 | 30 - 55 | 45 - 55 |
| Fast Mixing Speed (rpm) | 0 - 3000 | 0 - 1500 | 0 - 1500 | 0 - 1500 | 0 - 1500 | 0 - 1500 | 0 - 1500 | 0 - 1200 | 0 - 1200 |
| Butterfly Era (d/d) | 0 - 1000 | 0 - 400 | 0 - 400 | 0 - 400 | 0 - 400 | 0 - 400 | 0 - 400 | 0 - 400 | 0 - 400 |
| Anchor Speed (rpm) | 0 - 100 | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 |
| Total Volume (Lt) | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Useful Volume (Lt) | 2 - 8 | 20 - 80 | 60 - 240 | 100 - 400 | 200 - 800 | 300-1200 | 400-1600 | 600-2400 | 1000-4000 |
| Machine Type | SM10-3MIL | SM100-3MIL | SM300-3MIL | SM500-3MIL | SM1-3MIL |
| Speed Mixer (Kw) | 1,5 - 3 | 5,5 - 11 | 11 - 22 | 15 - 45 | 30 - 75 |
| Butterfly Mixer (Kw) | 4 - 5,5 | 7,5 - 15 | 15 - 30 | 30 - 55 | 55 - 90 |
| Anchor Mixer (Kw) | 0,75 - 1,5 | 4 - 5,5 | 7,5 - 11 | 11 - 15 | 15 - 30 |
| Fast Mixing Speed (rpm) | 0 - 3000 | 0 - 1500 | 0 - 1500 | 0 - 1500 | 0 - 1500 |
| Butterfly Era (d/d) | 0 - 1000 | 0 - 400 | 0 - 400 | 0 - 400 | 0 - 400 |
| Anchor Speed (rpm) | 0 - 100 | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 |
| Total Volume (Lt) | 10 | 100 | 300 | 500 | 1000 |
| Useful Volume (Lt) | 2 - 8 | 20 - 80 | 60 - 240 | 100 - 400 | 200 - 800 |
| Machine Type | SM1.5-3MIL | SM2-3MIL | SM3-3MIL | SM5-3MIL |
| Speed Mixer (Kw) | 45 - 75 | 45 - 90 | 55 - 90 | 75 - 132 |
| Butterfly Mixer (Kw) | 55 - 90 | 75 - 110 | 90 - 132 | 110 - 160 |
| Anchor Mixer (Kw) | 22 - 45 | 30 - 55 | 30 - 55 | 45 - 55 |
| Fast Mixing Speed (rpm) | 0 - 1500 | 0 - 1500 | 0 - 1200 | 0 - 1200 |
| Butterfly Era (d/d) | 0 - 400 | 0 - 400 | 0 - 400 | 0 - 400 |
| Anchor Speed (rpm) | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 |
| Total Volume (Lt) | 1500 | 2000 | 3000 | 5000 |
| Useful Volume (Lt) | 300-1200 | 400-1600 | 600-2400 | 1000-4000 |
The Triple-Shaft Mixer is an optimal choice for industries requiring fast, efficient, and precise mixing processes. This equipment effectively handles a variety of materials, including powders, granules, liquids, ensuring a homogeneous mixture. It is widely used in fields such as food, chemicals, pharmaceuticals, and cosmetics.
Paints
Printing Inks
Pharmaceuticals
Food
Cosmetics
Chemicals
Coatings
Construction Chemicals
Glues and Adhesives
Dyes
For a more intuitive view of the Triple-Shaft Mixer, please watch the video below.
A Au Tech is committed to providing customers with mixers that feature superior quality, high durability, and optimal performance. With a combination of advanced technology and extensive experience, we are ready to meet your diverse production needs.
Contact us for detailed consultation about The Triple-Shaft Mixer. We are honored to accompany you on your journey to enhance production efficiency and achieve new successes!
