HIGH – SPEED DISSOLVER MIXER

High-Speed Dissolver Mixer

Main feafures

- Use of moveable mixing containers

- Controlled by modern inverter technology

- Designed for producting products with medium to high viscosity

- Adjustable height for the shaft and mixing impeller

Quotation

The High-Speed Dissolver Mixer is a device designed for quickly and uniformly mixing various materials in industrial production processes. With its high performance and effective mixing capabilities, it provides an ideal solution for industries such as food, chemicals, pharmaceuticals and cosmetics, optimizing production processes and enhancing product quality.

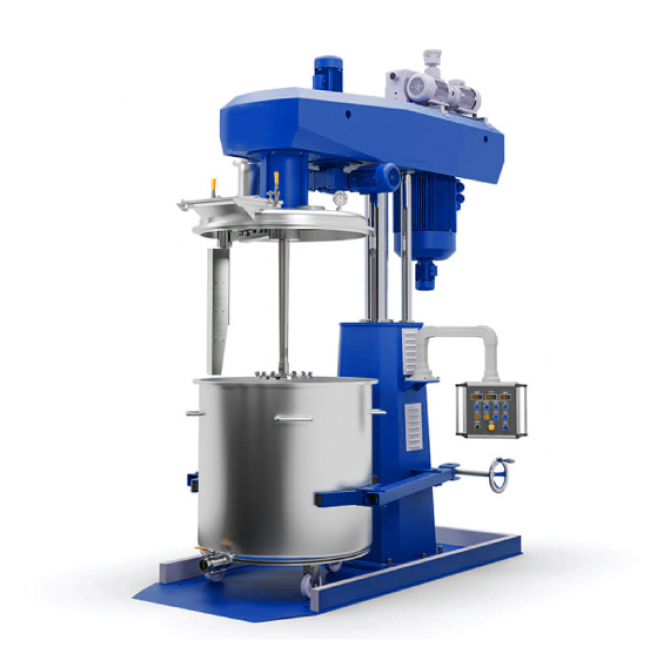

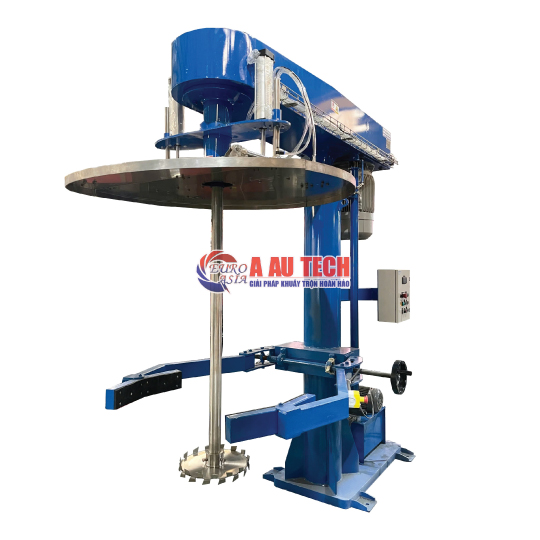

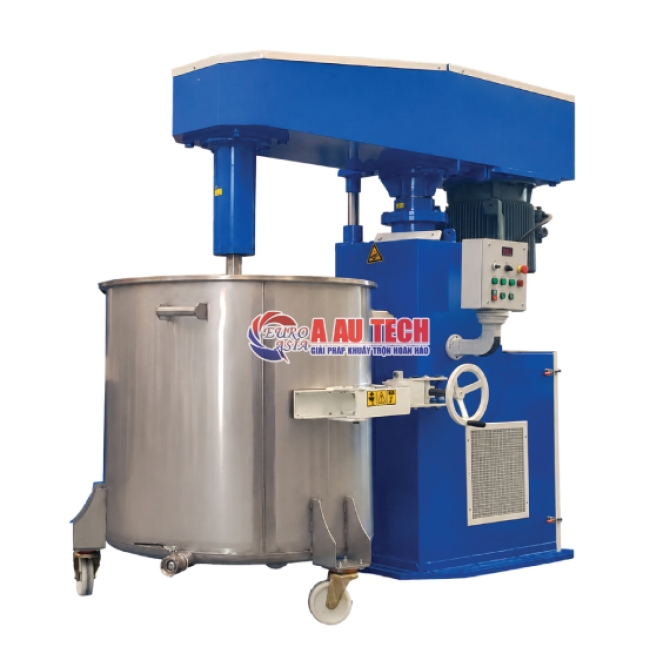

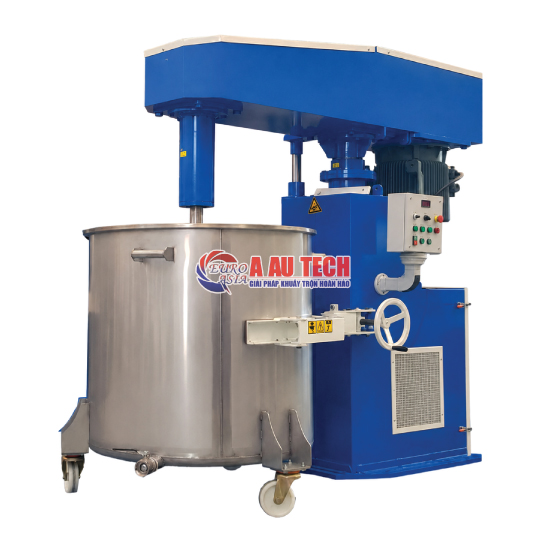

Structure of the High-Speed Dissolver Mixer

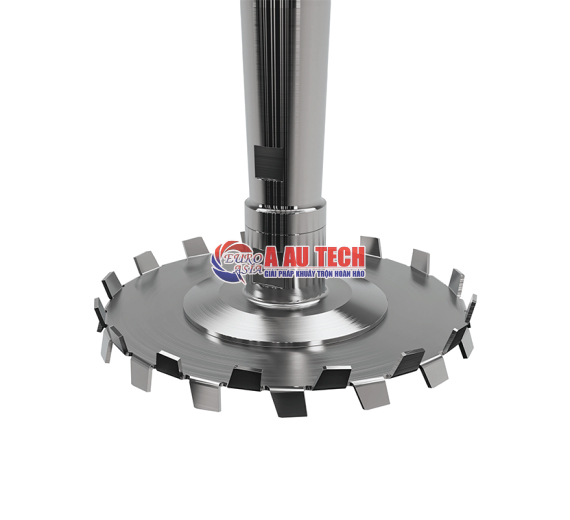

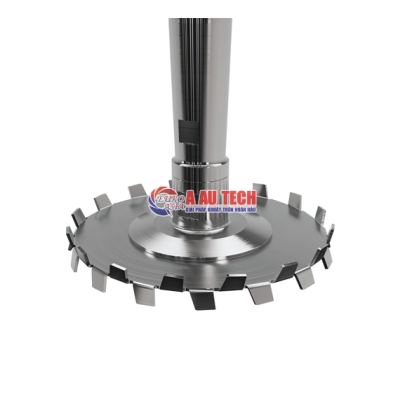

The High-Speed Dissolver Mixer features a robust and durable structure, with a shaft and mixing impeller made from high-quality 304L stainless steel, ensuring longevity and easy cleaning. The specially designed mixing impeller optimizes the mixing process, producing a uniform blend in a short amount of time. With adjustable speed and operating parameters, users can easily modify settings to meet the specific requirements of different materials, ensuring an efficient and precise mixing process. The machine also has the ability to move up and down along the body using an electro-hydraulic system and can perform mixing at the desired height.

Optional specifications

There are some optional speci cations like mixing speed, volume, main motor, ex – proof design in ATEX Zone 1 Eex dIIB T4 standards and double disc.

Machine Type	SM 3-L	SM 10-L	SM 50	SM 100	SM 200	SM 300	SM 500	SM 1	SM 2
Main Engine (Kw)	1.1-1.5	1.5-3	4-7.5	5.5-11	7.5-15	22-Nov	15-45	30-75	55-90
Mixing Speed (rpm)	0-3000	0-3000	0-1500	0-1500	0-1500	0-1500	0-1500	0-1500	0-1500
Total Volume (Lt)	3	10	50	100	200	300	500	1000	2000
Useful Volume (Lt)	0.6-2.4	2.8	Oct-40	20-80	40-160	60-240	100-400	200-800	400-1600

Machine Type	SM 3-L	SM 10-L	SM 50	SM 100
Main Engine (Kw)	1.1-1.5	1.5-3	4-7.5	5.5-11
Mixing Speed (rpm)	0-3000	0-3000	0-1500	0-1500
Total Volume (Lt)	3	10	50	100
Useful Volume (Lt)	0.6-2.4	2.8	Oct-40	20-80

Machine Type	SM 200	SM 300	SM 500	SM 1	SM 2
Main Engine (Kw)	7.5-15	22-Nov	15-45	30-75	55-90
Mixing Speed (rpm)	0-1500	0-1500	0-1500	0-1500	0-1500
Total Volume (Lt)	200	300	500	1000	2000
Useful Volume (Lt)	40-160	60-240	100-400	200-800	400-1600

Field of use

The High-Speed Dissolver Mixer is widely used across various industries, including paint, construction chemicals, surface coatings, plaster, printing inks, pigments, adhesives, cosmetics, food products, and pesticides.

Application

Paint

Construction chemicals

Surface coatings

Plaster

Printing ink

Pigments

Adhesives

Cosmetics

Food products

Pesticides

Introduction video

Please watch the video to have a more detailed and overview view of the parts of the High-Speed Dissolver Mixer directly manufactured by A Au.

Aautech always puts customer satisfaction first with high-quality products such as high-speed dissolving mixers. Developed from expertise and years of experience, these devices offer exceptional performance, reliability, and optimal efficiency. Aautech's High-Speed Dissolver Mixer is the ideal solution that meets your specific needs, helping to optimize production processes and enhance operational efficiency.
