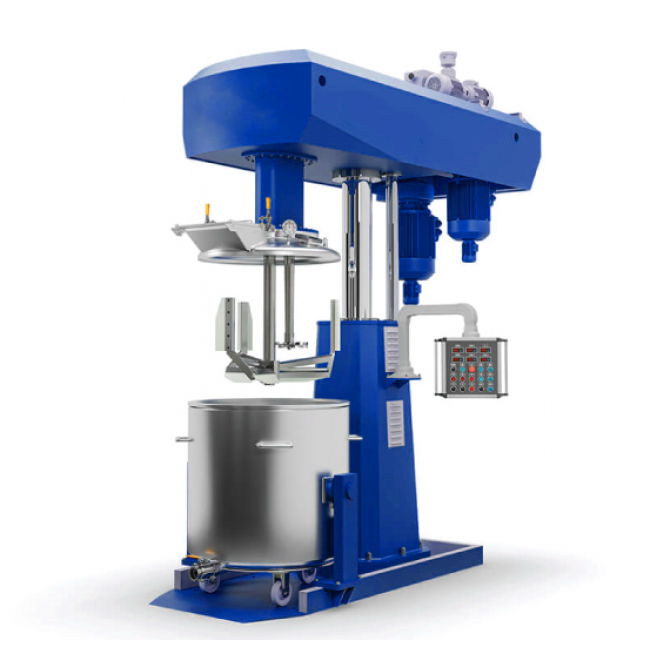

Butterfly Mixer

Main Features

- Suitable for mixing and dispersing high-viscosity products

- Use of moveable mixing containers

- The mixing shafts are independent of each other

- Drive by modern frequency converter technology

- Raise and lower the stirring/mixing paddle using a hydraulic system

- Can be installed on the working floor

Quotation

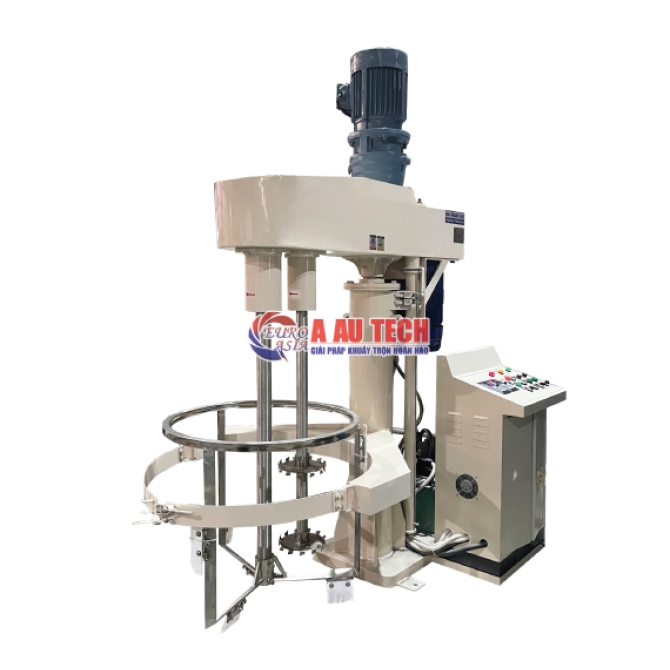

Butterfly Mixer is an industrial machine specially designed for mixing highly viscous ingredients. With powerful operation and outstanding performance, Butterfly Mixer have become a popular choice in industries such as construction, food, chemicals and cosmetics. This machine line not only brings uniformity in products but also optimizes the production process, saving time and manpower.

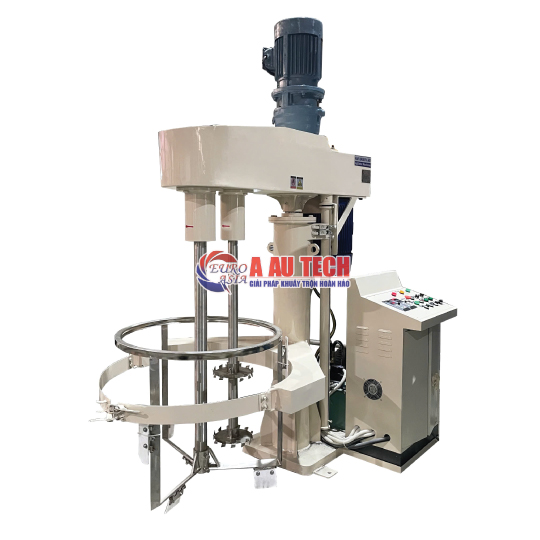

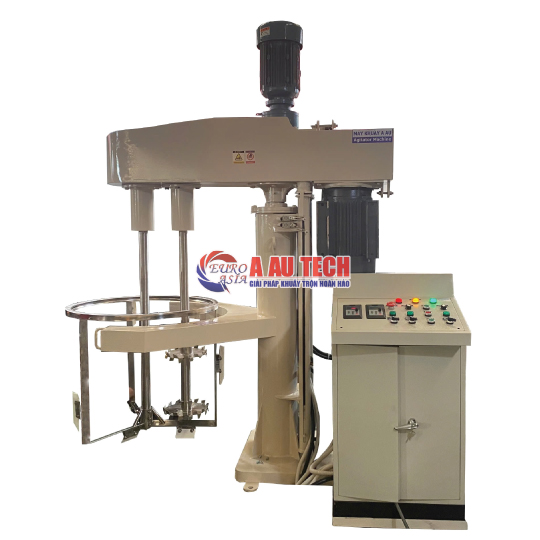

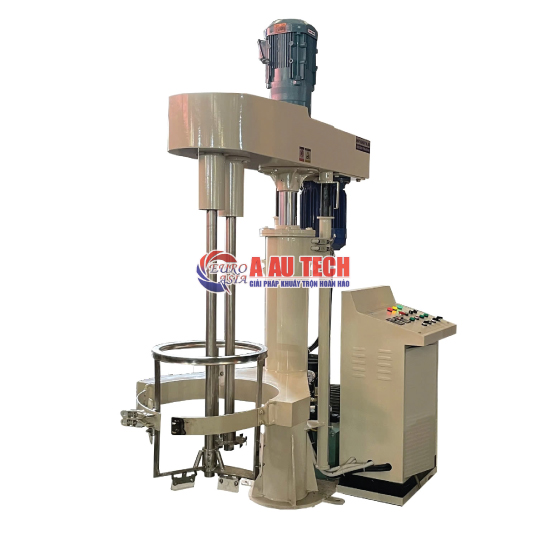

Structure of the Butterfly Mixer

The Butterfly Mixer is notable for its powerful motor and durable structure. All surfaces in contact with the product are made of high-quality 304L stainless steel, ensuring safety and sanitation.

Mixer arms have butterfly wings that can move forward and backward, thus ensuring homogeneous mixing of materials. The machine is also equipped with vibration and noise reduction systems, providing a comfortable working environment. Besides, the machine has independent mixing shafts, adjusting speed and time through inverter technology.

These mixers are designed with high safety features, allowing for immediate emergency stops in case of any malfunction or when operator intervention is needed, ensuring a safe and stable operation process.

The machine can also be raised or lowered using an electro-hydraulic system, allowing mixing at a desired height. Besides our standard models, the machine can be customized for your project with your preferred motor power.

Optional requirements

In addition to standard features, the Butterfly Mixer offers various options to meet diverse production needs, such as volume, mixing speed, ATEX Zone 1 EEx dIIB T4 explosion-proof design, two-tier mixing blades, temperature measurement systems, and PC/PLC control.

Machine Type	SM10-2MIL	SM100-2MIL	SM300-2MIL	SM500-2MIL	SM1-2MIL	SM2-2MIL	SM3-2MIL	SM5-2MIL
Speed Mixer (Kw)	1.5 - 3	5.5 - 11	11-22	15 - 45	30 - 75	55 - 90	75 - 110	90 - 132
Butterfly Mixer (Kw)	4 - 5.5	7.5 - 15	15 - 30	30 - 55	55 - 90	75 - 110	90 - 132	110 - 162
Speed Mixer Speed (rpm)	0 - 3000	0 - 1500	0 - 1500	0 - 1500	0 - 1500	0 - 1500	0 - 1200	0 - 1200
Butterfly Era (d/d)	0 - 700	0 - 300	0 - 300	0 - 300	0 - 300	0 - 300	0 - 300	0 - 300
Total Volume (Lt)	10	100	300	500	1000	2000	3000	5000
Useful Volume (Lt)	2-8	20 - 80	60 - 240	100 - 400	200 - 800	400-1600	600-2400	1000-4000

Machine Type	SM10-2MIL	SM100-2MIL	SM300-2MIL	SM500-2MIL
Speed Mixer (Kw)	1.5 - 3	5.5 - 11	11-22	15 - 45
Butterfly Mixer (Kw)	4 - 5.5	7.5 - 15	15 - 30	30 - 55
Speed Mixer Speed (rpm)	0 - 3000	0 - 1500	0 - 1500	0 - 1500
Butterfly Era (d/d)	0 - 700	0 - 300	0 - 300	0 - 300
Total Volume (Lt)	10	100	300	500
Useful Volume (Lt)	2-8	20 - 80	60 - 240	100 - 400

Machine Type	SM1-2MIL	SM2-2MIL	SM3-2MIL	SM5-2MIL
Speed Mixer (Kw)	30 - 75	55 - 90	75 - 110	90 - 132
Butterfly Mixer (Kw)	55 - 90	75 - 110	90 - 132	110 - 162
Speed Mixer Speed (rpm)	0 - 1500	0 - 1500	0 - 1200	0 - 1200
Butterfly Era (d/d)	0 - 300	0 - 300	0 - 300	0 - 300
Total Volume (Lt)	1000	2000	3000	5000
Useful Volume (Lt)	200 - 800	400-1600	600-2400	1000-4000

Applications of the Butterfly Mixer

The Butterfly Mixer is often used to mix high-viscosity materials, such as industrial paints, coatings, glues, construction chemicals, cosmetics, putty, and printing ink. The Butterfly Mixer combined with high-speed dispersion blades helps ensure the mixing, homogenization and dispersion of materials takes place quickly.

Application

Industrial paints

Coatings

Glues and adhesives

Plaster

Construction chemicals

Cosmetics

Putty

Printing ink

Introduction video

Watch the video to gain a detailed and comprehensive overview of the components of the Butterfly Mixer, manufactured directly by Aautech.

The Butterfly Mixer is favored in industrial fields for its durability, high performance, and user-friendly design. We are committed to providing high-quality products that meet the most stringent production requirements.
