Platform Type Mixers

Main Features

- Installation in a steel platform

- Pivoting over 2, 3 or 4 mixing container

- Adjustable mixing speed and time

- Production of medium to high-viscous products

- Ideal for batch production

- Controlled by modern inverter technology

Quotation

Platform Type Mixers are high-quality machines, designed to meet the needs of mixing with high capacity. The machine has a sturdy design, flexible operation and advanced structure, thereby providing optimal performance, helping to improve productivity and product quality for businesses.

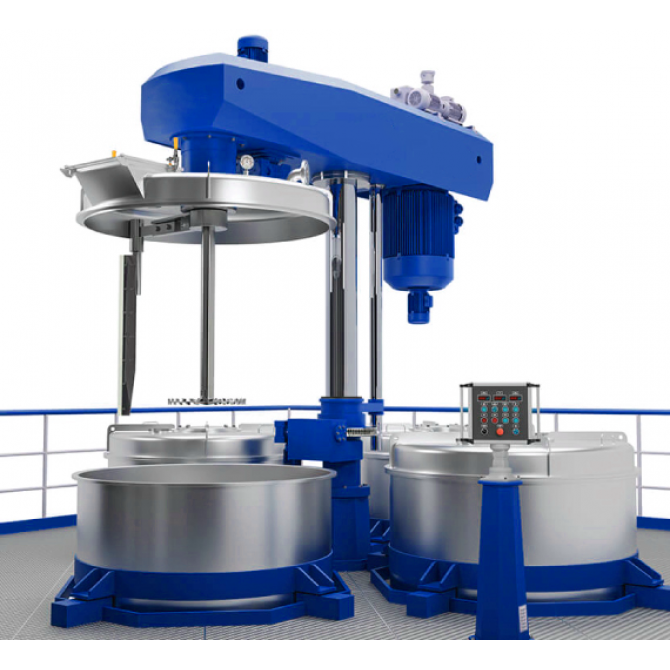

Structure of The Platform Type Mixer

The Platform Type Mixers stands out with its sturdy construction and exceptional durability. All surfaces that come into contact with materials are made from high-grade 304L stainless steel, ensuring durability and compliance with international safety standards.

The machine is equipped with modern inverter technology, allowing flexible adjustment of mixing speed and time, accurately meeting the requirements of many different types of materials.

Smart design allows integrating up to 4 mixing tanks on the same machine, providing high and stable performance even in high-intensity industrial environments.

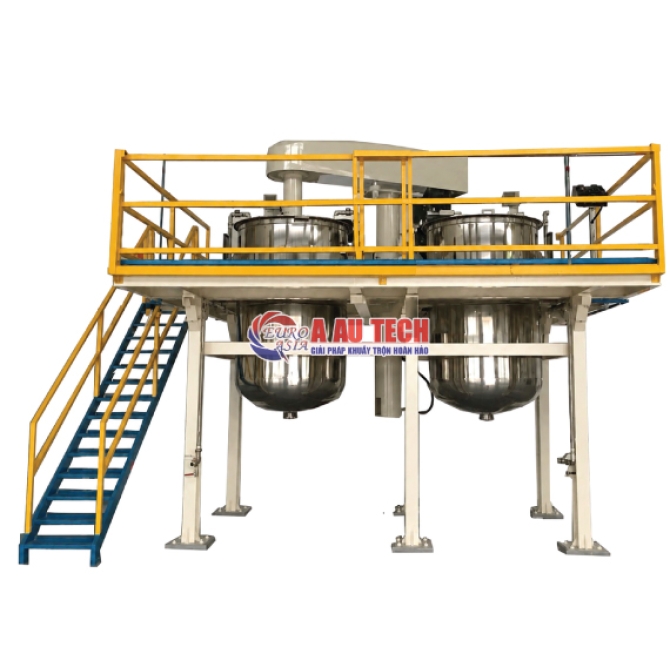

The machine is also equipped with an electro-hydraulic system, allowing it to be raised and lowered and mixed at the desired height, optimizing the production process.

In addition to standard models, A Au Tech also provides the service of manufacturing mixers according to customer requirements, with capacity and motor adjusted according to user needs.

Types and options

In addition to the standard design, Platform Mixers are available with many advanced options such as 2-stage mixing blades, temperature/weight measurement system, semi-automatic or fully automatic PC/PLC control system, fire prevention design,...and many other optional features.

Machine Type	SM1-I	SM2-I	SM3-I	SM4-I	SM5-I
Speed Mixer (Kw)	30 - 75	55 - 90	75 - 90	90 - 110	110 - 132
Speed Mixer Speed (rpm)	0-1500	0-1500	0-1200	0-1200	0-1200
Total Volume (Lt)	1000	2000	3000	4000	5000
Useful Volume (Lt)	200 - 800	400 - 1600	600 - 2400	800 - 3200	1000 - 4000

Machine Type	SM1-I	SM2-I	SM3-I	SM4-I	SM5-I
Speed Mixer (Kw)	30 - 75	55 - 90	75 - 90	90 - 110	110 - 132
Speed Mixer Speed (rpm)	0-1500	0-1500	0-1200	0-1200	0-1200
Total Volume (Lt)	1000	2000	3000	4000	5000
Useful Volume (Lt)	200 - 800	400 - 1600	600 - 2400	800 - 3200	1000 - 4000

Applications

Platform Type Mixers are very versatile and are widely used in industries such as food, chemicals, cosmetics, pharmaceuticals, printing inks, adhesives, construction chemicals, coatings, etc. .. In particular, the machine is capable of simultaneously processing a variety of materials with medium to high viscosity, providing a comprehensive mixing solution for complex industrial requirements.

Application

Putty

Composites

Coatings

Construction chemicals

Adhesives

Printing inks

Pharmaceuticals

Cosmetics

Chemicals

Food

Introduction video

The video illustrating the operating process of The Platform Type Mixer will help customers better visualize the operational capabilities and outstanding features of this mixer line.

A Au Tech is committed to providing high-quality products that meet all industrial production requirements. With advanced technology and meticulous design, The Platform Type Mixer is a reliable choice for businesses aiming to boost production efficiency.
