Nano Horizontal Milling Machines

Main Features

- Create ultra-small nano-sized particles

- High-precision operational control

- 304L stainless steel grinding chamber

- Flexible speed adjustment

- Suitable for various materials

- Control over grinding time and temperature

The Nano Horizontal Milling Machine is specifically designed for applications in Nano technology. This equipment not only has the capability to produce materials with microscopic dimensions but also allows for precise control of operational parameters. This enables businesses to enhance production efficiency and increase product durability.

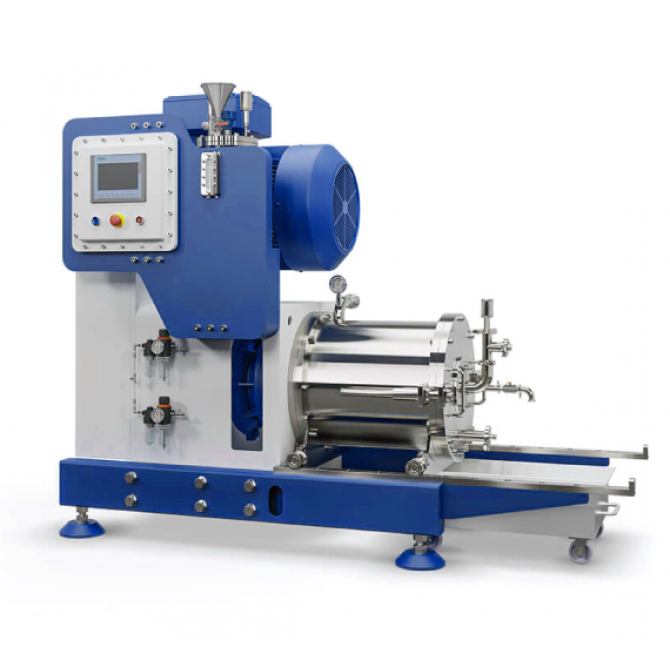

Structure of The Nano Horizontal Milling Machine

The Nano Horizontal Milling Machine is designed with specialized grinding components that create powerful grinding effects. The internal parts of the grinding chamber continuously perform fine grinding, reducing material size to the nano scale. Thanks to this process, the surface area of ​​the raw material is increased, thereby helping the reactions take place more efficiently and significantly improving the properties of the product.

All components in contact with the product are made from 304L stainless steel, meeting sanitation and safety standards, ensuring no adverse reactions or impact on product quality.

The machine is also equipped with a high-precision control system that allows for the adjustment of grinding speed, material feed rate, and other operational parameters. This helps achieve the desired nano particle size and ensures effective dispersion. Additionally, factors such as grinding time and temperature can be flexibly adjusted to suit the characteristics of various materials.

Optional Specifications

To meet diverse production needs, The Nano Horizontal Mill has the following optional specifications: Capacity, grinding chamber volume, explosion-proof design,...

Machine Type SMNG 10 SMNG 25 SMNG 60 SMNG 90 SMNG 150 SMNG 300 SMNG 400
Boiler Volume (Lt.) 18.2 46 107 167 285 488 615
Effective Volume (Lt.) 13 28 68 96 150 300 400
Transition Volume (Lt.) 80 - 1000 200 - 2000 500 - 3000 800 - 3500 3000 - 8000 5000 - 15000 5000 - 18000
Spindle Speed ​​(rpm) 350 - 1500 350 - 1500 350 - 1450 350 - 1450 250 - 900 250 - 900 250 - 900
Flow Rate (Lt./Hour) 200 - 1800 200 - 2000 500 - 3000 800 - 3500 3000 - 8000 5000 - 15000 5000 - 18000
Main Engine Power (Kw.) 18,5 - 22 37 - 45 75 - 90 90 - 132 132 - 160 250 - 315 355 - 415



Applications

The Nano Horizontal Milling Machine is widely applied across various industries: printing ink, paint, fertilizers, chemicals, coatings, food and pharmaceuticals.

Nano Horizontal Milling Machines

Application

Pharmaceuticals

Food

Coatings

Chemicals

Fertilizers

Paint

Printing ink

Introduction video

To help customers better understand the structure and operating process of The Nano Horizontal Milling Machine, please watch the video below.

With advanced technology and the ability to meet various production demands, A Au’s nano horizontal milling machine is an ideal choice to enhance production efficiency and achieve the highest product quality. We are committed to providing durable, optimized, and high-quality products that best meet customer requirements.



If you have any questions regarding The Nano Horizontal Milling Machine, please feel free to contact us for detailed support.
