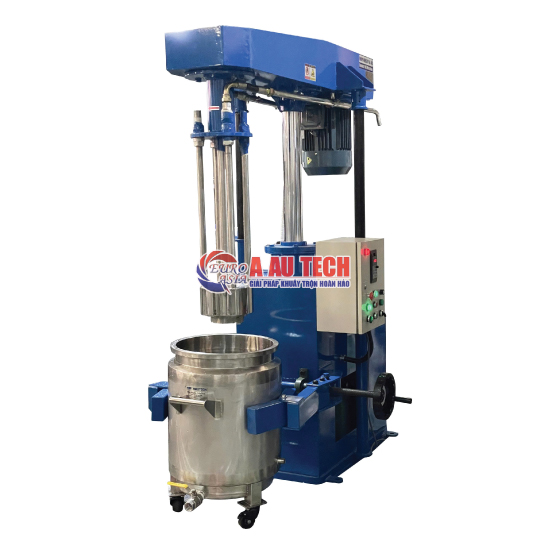

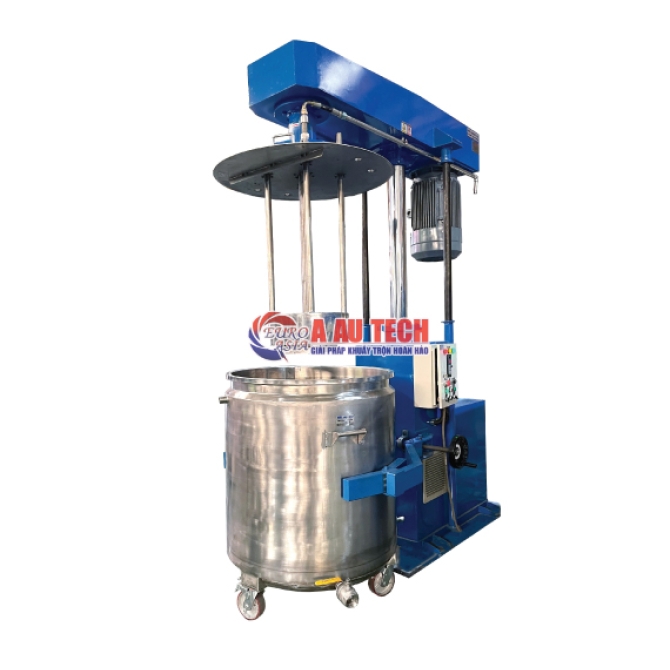

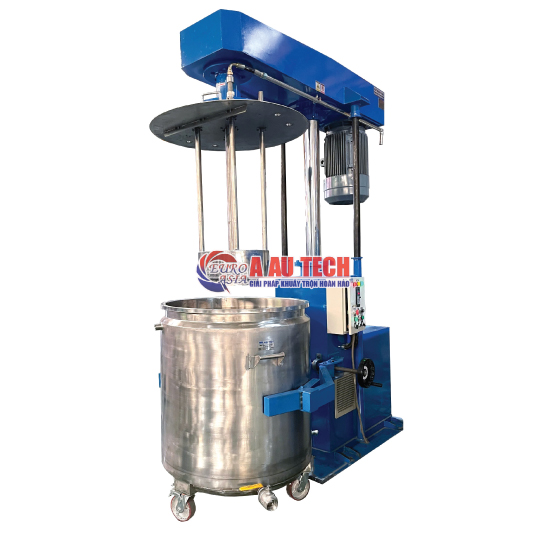

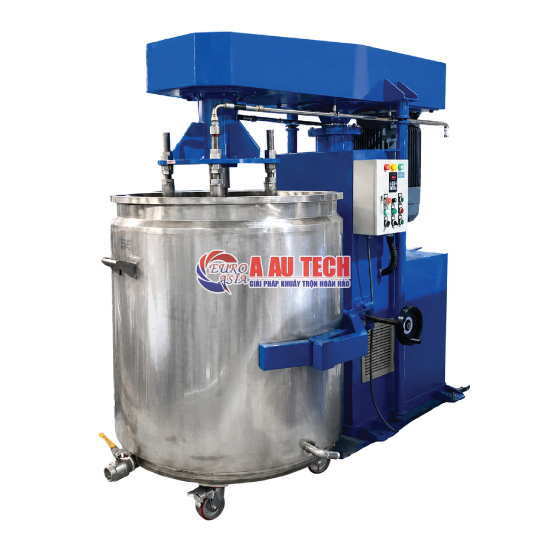

Basket Mill

Main feafures

- Producing products with low to medium viscosity

- Grinding basket can be adjusted in height

- Use anti-corrosion materials

- Direct cooling right at the grinding basket

- Flexible speed adjustment

- Hydraulic lifting system

- Use of moveable mixing containers

Quotation

Basket Mill is an important equipment in the production and dispersion of liquid materials. With the ability to grind, disperse and homogenize small particles in solution, the Basket Mill not only improves production efficiency but also helps control product quality optimally.

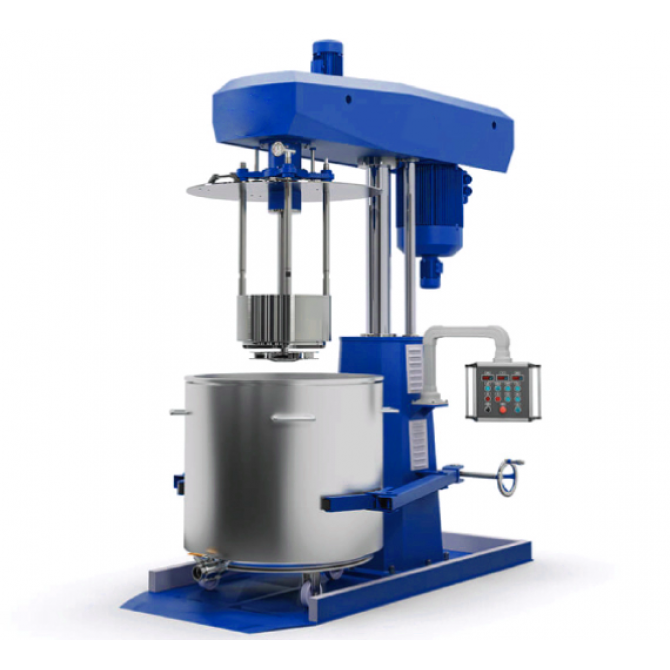

Structure of Basket Mill

The crusher has a special structure with the machine body and product contact surfaces all made from high quality stainless steel, ensuring durability and hygiene.

The grinding basket is considered a key component, housing grinding beads within it. The grinding process occurs through friction and impact between the grinding parts and materials inside the milling chamber. This mechanism helps the ingredients to be crushed into finer particles, creating a uniform and high-quality mixture. The grinding basket is also equipped with a cooling system, which helps control the temperature during the grinding process.

The Basket Mill has the ability to flexibly adjust speed thanks to inverter technology, allowing it to be suitable for many different types of materials. In addition, the electro-hydraulic lifting system helps adjust grinding height according to production needs.

Optional specifications

Basket Mills are available in a variety of specification options to meet the needs of small to large scale factories. Options include power capacity, basket volume, vacuum system, explosion-proof design, and more. Depending on production requirements, businesses can select suitable features to ensure safe and efficient operation in different working environments.

Machine Type	SBM10-L	SBM100-I	SBM300-I	SBM500-I	SBM1-I	SBM2-I
Main Engine Power (Kw)	1.5 - 3	11 - 22	15 - 22	22 - 37	37 - 75	55 - 90
Mixing Speed (rpm)	0-3000	0-1500	0-1500	0-1500	0-1000	0-1000
Total Volume (Lt)	10	100	300	500	1000	2000
Useful Volume (Lt)	2 - 8	20 - 80	60 - 240	100 400	200 - 800	400 - 1600

Machine Type	SBM10-L	SBM100-I	SBM300-I
Main Engine Power (Kw)	1.5 - 3	11 - 22	15 - 22
Mixing Speed (rpm)	0-3000	0-1500	0-1500
Total Volume (Lt)	10	100	300
Useful Volume (Lt)	2 - 8	20 - 80	60 - 240

Machine Type	SBM500-I	SBM1-I	SBM2-I
Main Engine Power (Kw)	22 - 37	37 - 75	55 - 90
Mixing Speed (rpm)	0-1500	0-1000	0-1000
Total Volume (Lt)	500	1000	2000
Useful Volume (Lt)	100 400	200 - 800	400 - 1600

Applications

Basket Mills are widely used in industries such as paint, printing ink, chemicals, fertilizers, cosmetics, coatings.

Application

Coatings

Cosmetics

Fertilizers

Chemicals

Printing ink

Paint

Introduction Video

The video below will help you better understand the structure and operating process of the basket mill. From the grinding process, to adjusting the rotation speed of the basket. The video provides a detailed look, helping you evaluate the efficiency that the crusher can bring to the production process.

A Au Tech is committed to providing high quality grinding machines that meet the most stringent technical standards and production requirements. With advanced design, flexibility and outstanding performance, A Au Tech products have been trusted and chosen by many customers.
