Planetary Mixer

Main Features

- High-quality stainless steel material

- Powerful motor for continuous use

- Multi-angle mixing paddle, quick and uniform mixing.

- Inverter technology for flexible speed adjustment

- Electro-hydraulic lifting system

- Suitable for producing many types of materials.

Quotation

Planetary Mixers are high-performance, versatile mixing machines widely applied across many industries. These machines are specially built to mix a variety of ingredients, helping the mixture achieve high uniformity.

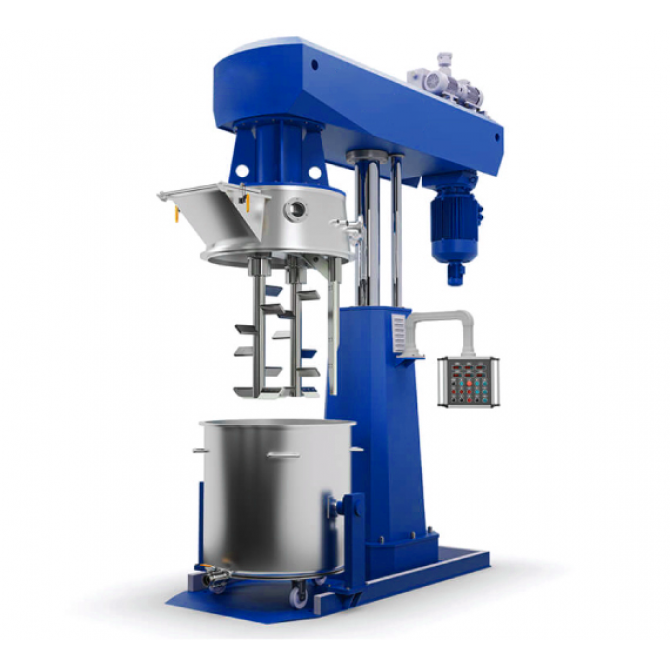

Structure of Planetary Mixer Machines

Planetary Mixer machines have a durable, robust construction made from high-quality stainless steel, ensuring long service life. With a powerful motor, they meet the demands for continuous and high-intensity use. All material-contact surfaces are crafted from 304L stainless steel, complying with safety standards.

The unique design of the mixing blades and rotating head ensures efficient mixing. The blades are arranged at multiple angles on the shaft, allowing materials to circulate from top to bottom and vice versa within the tank, achieving uniformity in a short time. Additionally, a scraping arm aids in moving materials off the tank walls, ensuring even distribution throughout.

With a friendly design, The Planetary Mixer is also equipped with a smart control panel, helping operators easily operate. Inverter technology allows flexible speed adjustment, along with an emergency stop button to enhance safety in bad situations or when operator intervention is required.

The machine also includes an automatic hydraulic lifting system, which supports mixing at different desired heights, increasing operational flexibility.

Optional Specifications

To meet the diverse needs of production facilities, Planetary Mixers are manufactured with various options, such as two-stage impeller, temperature measuring system, explosion-proof designs, customizable power capacities, PC/PLC control systems, and many other flexible features.

Machine Type	SPK50-I	SPK250-I	SPK500-I	SPK1000-I	SPK1500-I	SPK2000-I
Main Engine Power (Kw)	2.2 - 5.5	5.5 - 15	15 - 45	30 - 75	45 - 90	55 - 110
Mixing Speed (rpm)	0-80	0-80	0-80	0-80	0-80	0-80
Total Volume (Lt)	50	250	500	1000	1500	2000
Useful Volume (Lt)	Oct-40	50 - 200	100 - 400	200 - 800	300 - 1200	400 - 1600

Machine Type	SPK50-I	SPK250-I	SPK500-I
Main Engine Power (Kw)	2.2 - 5.5	5.5 - 15	15 - 45
Mixing Speed (rpm)	0-80	0-80	0-80
Total Volume (Lt)	50	250	500
Useful Volume (Lt)	Oct-40	50 - 200	100 - 400

Machine Type	SPK1000-I	SPK1500-I	SPK2000-I
Main Engine Power (Kw)	30 - 75	45 - 90	55 - 110
Mixing Speed (rpm)	0-80	0-80	0-80
Total Volume (Lt)	1000	1500	2000
Useful Volume (Lt)	200 - 800	300 - 1200	400 - 1600

Applications

Planetary Mixers are highly favored for producing medium-viscosity products. They are ideal not only for manufacturing construction chemicals, putty, silicone, mastic, pastes, and various sealants or adhesives, but they are also widely used in the pharmaceutical and food industries.

Application

Foods

Pharmaceuticals

Paints and coatings

Adhesives

Sealants

Pastes

Mastic

Silicone

Putty

Construction chemicals

Introduction video

To help customers better understand the structure and operating process of Planetary Mixers, please watch the video below.

A Au Tech is committed to delivering customer satisfaction through quality products, with Planetary Mixers being a prime example. These machines help businesses optimize productivity thanks to their powerful performance, high durability, and ease of operation.
